Developers often write software that handles sensitive data like customer information. Best practice and company standards dictate that this data should be encrypted at multiple levels: at rest, in transit and at the application. Easy-to-use solutions exist for encryption at rest, like encrypted block stores, and for encryption in transit, like TLS, but writing solid code for application-level encryption is still challenging. Common problems to tackle include choosing a good cryptographic technique, generating keys and managing them properly, preventing memory scanning attacks and rotating keys. For example, if you encrypt everything with one key and it is compromised, rotating the key and decrypting-then-re-encrypting all of the data is expensive and time consuming.
As we have made the transition to cloud native architectures and are well underway moving many services and applications to AWS, we have continued to focus significant attention on always improving our security posture. We considered how we could address problems surrounding encryption, key rotation and blast radius reduction as a company rather than leaving these comparatively difficult problems to each team to solve. As a result, we are delighted to present Asherah: an easy-to-use SDK which abstracts away the complexity of advanced encryption techniques and risk mitigation at enterprise scale. Asherah makes use of envelope encryption and hierarchical keys. In envelope encryption, the key used to encrypt a data element is itself encrypted by a separate, higher order key and the encrypted key value is stored with the data. These higher order keys form a hierarchy of keys that partition the key space and data, reducing the blast radius of a compromise and allowing for novel approaches to incremental rotation. Asherah abstracts away the complexity of managing that system, letting developers interact with data and encryption/decryption in standard ways with familiar APIs while offering a very high level of protection against compromise and data loss. Like alternative libraries such as Google’s Tink, we are careful to provide only those encryption algorithms that are known secure and initialize them in conformance with best practices. Our initially supported algorithm is AES256-GCM and we plan to provide interfaces for adding others while supporting and including only those that are known to be safe to use. A more detailed explanation of how our goals contrast with other open source alternatives and why we chose to propose our own SDK, see Related Work below.
Asherah is an incubator project and we are currently testing internally. In addition, we have a roadmap that includes plans to have third-party security audits of the code for every supported language. Our goal in open sourcing it is to invite the security community and the developer community at large to help us evaluate, test and iterate on this solution so that we can help developers manage private data more securely.
We wanted to make it easy for developers to write code that manages customer data without being forced to implement important features like key rotation and hierarchical key structures from scratch. The API itself is easy to use.
Step 1: Create a session factory
Each encryption context is wrapped in a new session that is produced from a factory method. The session contains details on the particular keys from a key hierarchy that will be used, a caching policy, a key rotation policy and the configuration of how performance metrics will be logged. A session is required for any encryption/decryption operations. For simplicity, the session factory uses the builder pattern, specifically a step builder. This ensures all required properties are set before a factory is built.
To obtain an instance of the builder, use the static factory method
newBuilder. Once you have a builder, you can use the
with<property> setter methods to configure the session factory properties. Below is an example of a session factory that uses in-memory persistence and static key management.
AppEncryptionSessionFactory appEncryptionSessionFactory = AppEncryptionSessionFactory
.withStaticKeyManagementService("secretmasterkey!") // hard-coded/static master key
.withMetricsEnabled() // Outputs timing and performance metrics to a configured log handler
We recommend that every service have its own session factory, preferably as a singleton instance within the service. This will allow you to leverage caching and minimize resource usage. Always remember to close the session factory before exiting the service to ensure that all resources held by the factory, including the cache, are disposed of properly.
Step 2: Create a session
Now that we have session factory, we need to create a session to be able to actually encrypt/decrypt any data. Use the factory created in step 1 to do this. The payload and data row record types can be specified while creating the session. These are currently restricted to JSON objects and byte arrays.
// The first parameter for AppEncryption is the payload type and the second is the DRR type
AppEncryption<byte, byte> encryptionSessionBytes = appEncryptionSessionFactory.getAppEncryptionBytes("partitionId"))
The scope of a session is limited to a partition id, which is used to partition the lowest order of keys Asherah manages. As with the session factory, remember to close the session at the end of the transactions to dispose of all the resources properly.
Step 3: Use the session to accomplish the cryptographic task
We are now ready to use Asherah to encrypt and decrypt data. Asherah supports two usage patterns. We’ll use the simpler encrypt/decrypt pattern for the purpose of this post. For usage details of the advanced load/store pattern, please check out our public repo on GitHub.
This usage style is similar to common encryption utilities where payloads are simply encrypted and decrypted, and it is completely up to the calling application for storage responsibility.
String originalPayloadString = "mysupersecretpayload";
// encrypt the payload
byte dataRowRecordBytes = encryptionSessionBytes.encrypt(originalPayloadString.getBytes(StandardCharsets.UTF_8));
// decrypt the payload
String decryptedPayloadString = new String(encryptionSessionBytes.decrypt(newBytes), StandardCharsets.UTF_8);

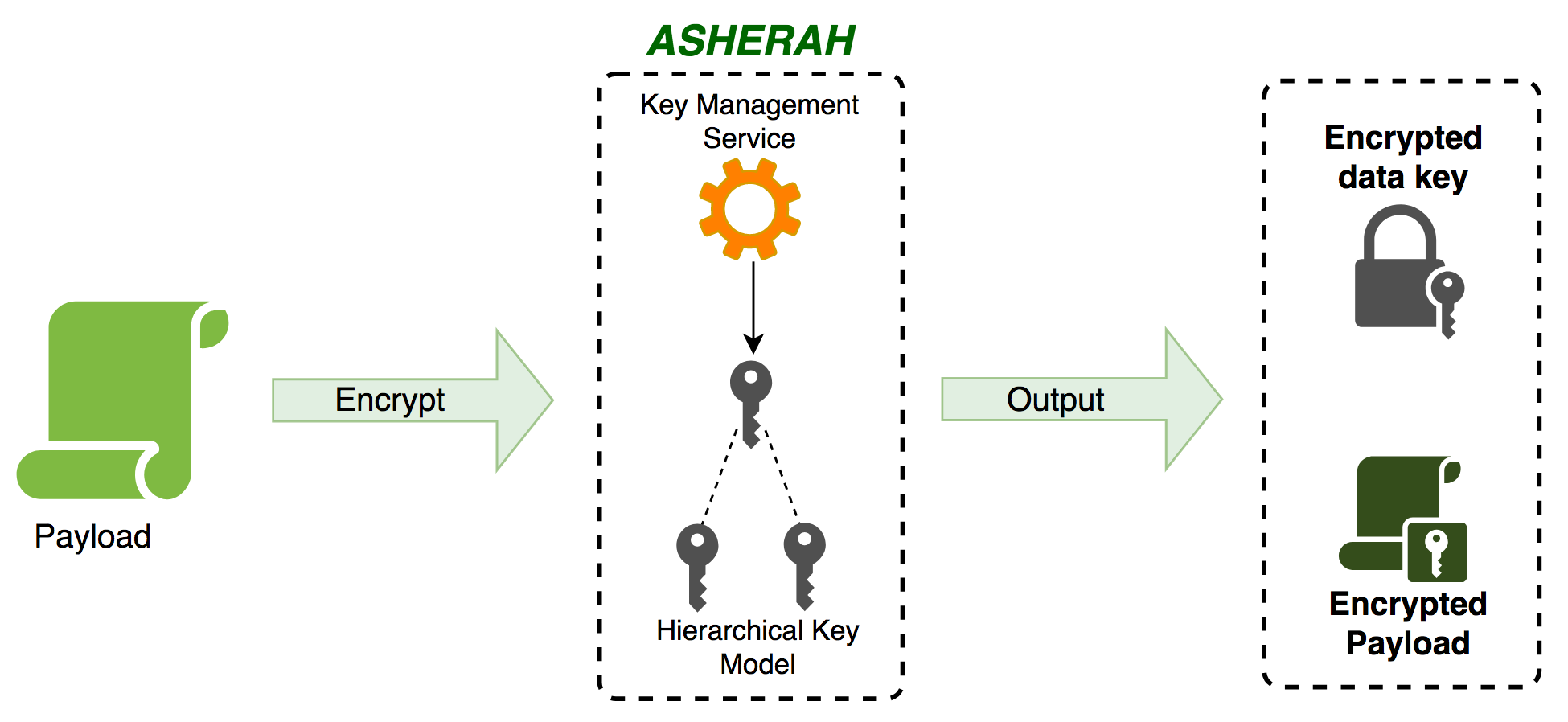

Here is a diagram showing at a high level a typical encryption operation in Asherah:
- Easy incremental key rotation and blast radius reduction: Asherah generates cryptographically strong keys and arranges them in a hierarchy, enhancing the value provided by envelope encryption. The hierarchical key model also encourages frequent key rotation which limits the blast radius in case of a security breach. These key rotations happen automatically as you encrypt and decrypt data according to the crypto policy you use in your session. Behind the scenes, Asherah considers whether keys are revoked, stale or otherwise in need of rotation and decrypts and re-encrypts your data and rotates your keys.
- User configurable key management service: Asherah can integrate with master key management services using a pluggable key management service interface, allowing it to be cloud agnostic or support on-premise implementations.
- User configurable datastore: Asherah manages generated data keys via a pluggable datastore, providing you with a flexible architecture.
- In-memory key protection against a growing number of key hijacking attacks: Asherah takes advantage of our Secure Memory library, which makes use of native calls and off-heap memory to secure keys. This protects against several memory investigation attacks such as scanning memory directly via proc, forcing a process to page to disk to recapture process memory and trigging a core dump. As we continue to implement new ways to protect memory and pair these with recommended system level settings (such as, on Linux, setting /proc/sys/kernel/yama/ptrace_scope to a restrictive value), the protections we add to this library give Asherah’s internal key caches greater resilience to attack.
As a developer, the three primary external resources you interact with are the
Metastore and the
KeyManagementService is used to integrate with a service, typically a cloud provider’s core key management implementation, that manages the master key you use as the root for our hierarchical key model. The
Metastore is the backing datastore Asherah used to manage the data keys it generates to construct the hierarchical model. Both of these interfaces follow a pluggable model so that Asherah remains highly extensible for the diversity of use-cases that must be managed in enterprise scale environments. Finally, the
AppEncryptionSessionFactory is where you initialize your encryption or decryption context. A helpful and configurable
CryptoPolicy is initialized in this conext and it wraps and manages the complexity of key rotation schedules and caching behavior, among other things. Future Asherah features will primarily be exposed via the policy.
Envelope encryption is a method for managing and storing key material alongside the data that the key encrypts. In this model, when you encrypt a data element, you take the key you used to encrypt the data, encrypt the key with a separate, higher order key and then store the encrypted key in the same data structure as the encrypted data. In the diagram above, the higher order key is used to encrypt a random string, the lower order key plaintext, creating a lower order key ciphertext. The “envelope” is then created with the lower order key ciphertext and the ciphertext you get by encrypting your data with the lower order key plaintext. The dotted line shows the inclusion of these elements in the envelope. Envelope encryption can be useful for simplifying the management of the source of truth for which key is currently in play for which data element (the envelope itself is the source of truth, rather than a separate metadata store) and provides a simple basis from which a key hierarchy can be built. A very thoughtful description of this methodology can be found on Google’s Security Products page.

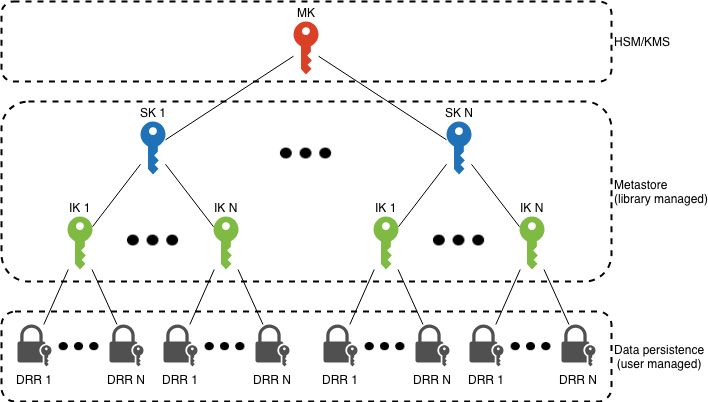

The notion of higher and lower order keys can be generalized to a hierarchy or tree of keys:
The key hierarchy here has several tiers, each of which you can use to partition your data. A good example of a plausible data partitioning scheme would be to assign each service in your infrastructure a separate SK. Then, assign each customer in your service a separate IK. This would mean that every data element in the DRR (data row record) layer is encrypted using a private key that even if recovered could never expose the data of another customer, or, any data at all from a different service.
In order to see how all of these pieces fit together, let’s take a look a sequence diagram of a encrypting a payload using Asherah:
The level of complexity increases significantly when different levels of keys are in need of rotation or are stale in the cache. All of this complexity is already implemented for you in Asherah!
When we decided to address these problems internally, our first step was to evaluate alternative open source libraries that might help. There are a small number of well-supported projects that have some of the features we wanted, such as wrapping calls to cryptographic libraries and exposing pluggable key storage backends. Two of these were similar enough that we evaluated them in depth: the AWS Application Encryption SDK and Google’s Tink. In each case, though we did see some overlap between our goals and the goals of these projects, our focus on key rotation, implementing a key hierarchy for blast radius reduction, a modular CryptoPolicy idea for managing aspects of the library’s behavior and our thoughts on how to layer the library on top of a layer that would be an area for us to continue expanding our protections of in-memory cache data ended up moving us in the direction of our own implementation. We continue to evaluate these and other projects and are always looking for ways to contribute and work together on these problems.
Implementing application layer encryption is a challenge to get right. Asherah makes it easy to incorporate an advanced hierarchical key model with pluggable storage for key management ready-to-use, while never compromising on memory protection. We want developers to focus on what drives their business domain and still maintain a high security posture.
The release of Asherah to the public is significant: it tackles a complex problem across many languages. Internally, our teams are continuously testing the security model provided to ensure that the ideas work and address real-world problems. Further, this drives our progress in adding additional languages and features, which are already in the works. Our roadmap includes plans to perform external security audits for each codebase as we evolve the project out of the incubator phase. We hope the rest of the community can benefit from the work that has been invested into this project.
Help us make it better! Let us know what you think! Head to our repo to start learning more.
Joey Wilhelm and Lilia Abaibourova provided feedback on the Open Source documentation and contributed valuable additions that make up the foundation of this effort and this post. Eddie Abrams provided cheerleading support and bottomless caffeinated beverages on demand.
